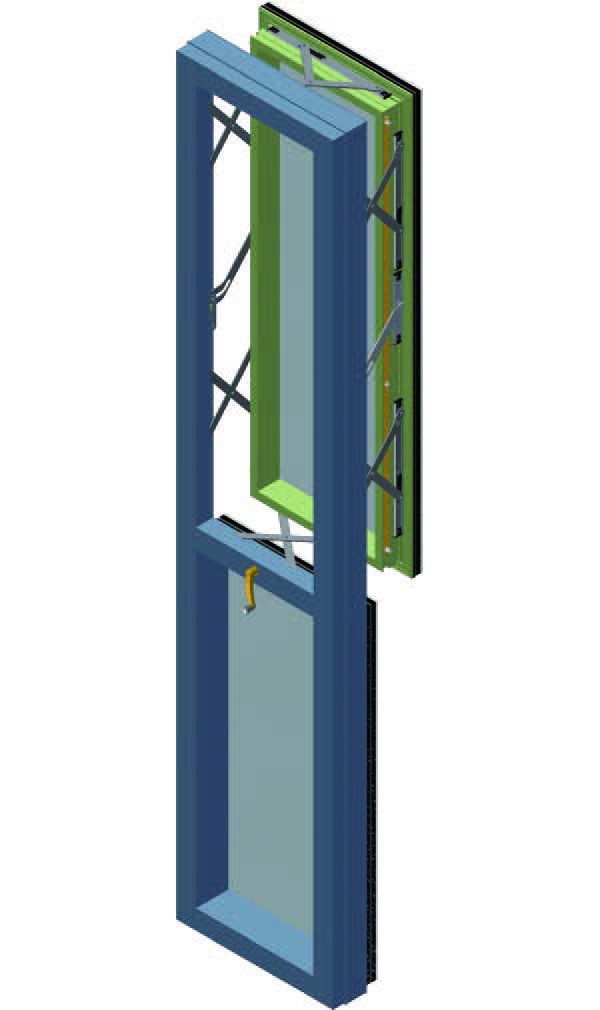

手摇平推窗开启五金系统是必凯威公司的专利(CN203050389U 实用新型专利)产品系统，实现了窗户平行推出和锁点启闭的同步，多点锁的配置满足任何正常风压条件下客户对锁点强度的可能要求。
·适用于所有订制门窗和幕墙开启窗系统:
·手摇柄开启控制
·任意开启位置主动定位
·预锁紧力可调
·预留纱窗的安装位置

Manual cranking operated parallel opening window system is the patented (CN203050389U Utility model patents) product system of Smart home (Beijing), and realize the synchronization of parallel Windows’ opening and locking point open-close, the planning of the multi-point locking meet any normal demand of the customer’s concern with the locking strength, on the condition of different windy pressure.
·Apply to all custom windows and curtain wall opening elements
·Opening control by hand crank
·Any open position active positioning
·Prelocking force is adjustable
·Reserve the installation position of screen window

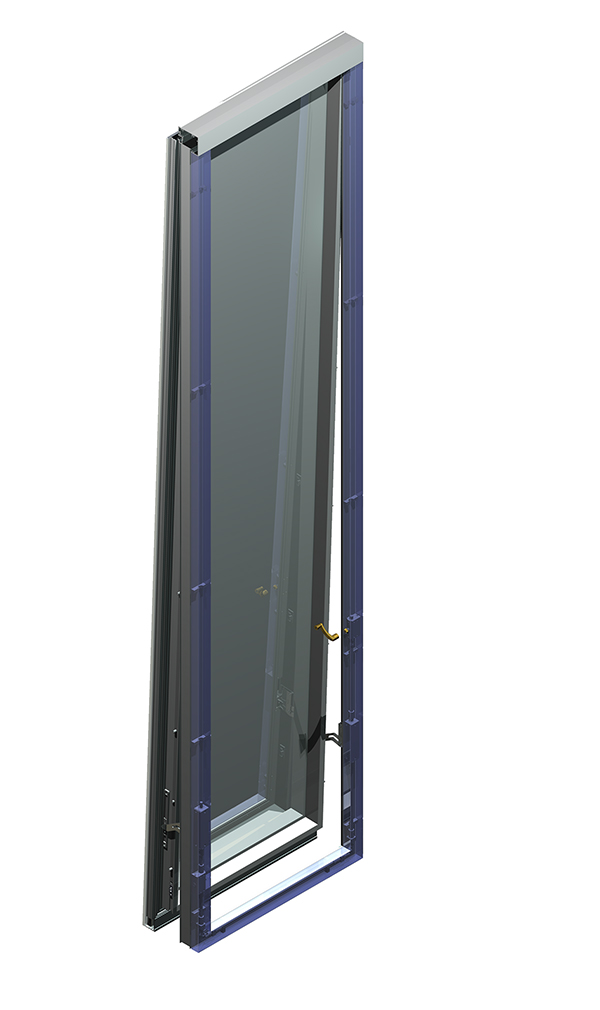

支臂式手摇悬窗开启系统
Driven arm crank operated top hung window opening system

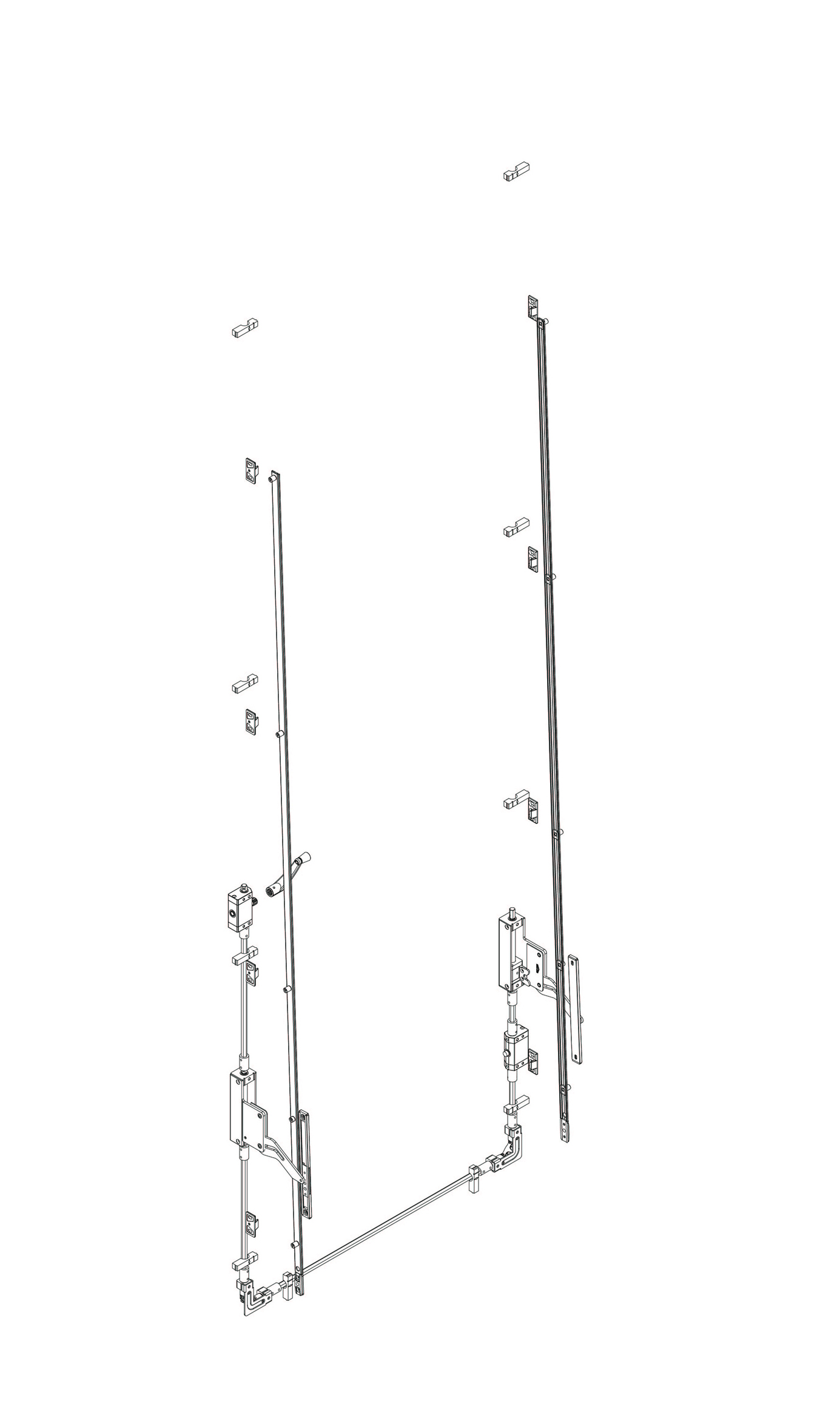

支臂式手摇悬窗开启五金系统是必凯威公司的专利(CN203050389U实用新型专利)产品系统，实现了悬窗推出和锁点启闭的同步，多点锁的配置满足任何正常风压条件下客户对锁点强度的可能要求。
适用于所有订制门窗和幕墙开启窗系统。

手摇柄开启控制
任意开启位置主动定位
预锁紧力可调
预留纱窗的安装位置

型材技术条件：
·传动条槽口宽度15mm
·传动条槽底宽度20mm
·槽口间距：22mm
·最小安装空间：64mm
·传动器槽口宽度：15mm
·传动器槽底宽度：20mm
·最小窗扇尺寸：400mm*750mm
·最大窗扇尺寸：1500mm*3900mm

The driven arm crank operated window hardware system is a patented (CN203050389U Utility model patents) product system of Smart Home, which realizes the synchronization of the launch of the top hung window and the opening and closing of the lock point. The configuration of the multi-point lock meets the customer's demand with strength of the lock point under any normal wind pressure. May require.
Suitable for all custom-made doors, windows and façade opening systems.

Hand crank open control
Active positioning at any opening position
Adjustable pre-locking force
Reserve the installation position of the screen window

Technical demand with related profile:
·Drive bar notch width:15mm
·Drive bar groove bottom width:20mm
·Groove space:22mm
·Minimum installation space:64mm
·Drive bar groove width:15mm
·Drive bar groove bottom width:20mm
·Minimum sash size: 400mm*750mm
·Maximum sash size: 1500mm*3900mm


链条式手摇悬窗开启系统
Chain type manual cranking top hung window opening system

无需专用型材
·适用于所有门窗和幕墙开启窗系统
·手摇柄开启控制
·任意开启位置主动定位
·预锁紧力可调
·可选配多点锁联动,实现自动式或半自动式完成多点锁锁紧

产品特点:
·链条采用优质不锈钢制造
·低噪音、低能耗、免维护的特征
·体积小巧，外形设计现代感强，与窗户配合和谐美观大方
·推拉力锁紧力强劲，适用于大部分开启窗

产品参数：
·适用窗型：悬窗（铰链以及合页）
·宽度1500mm以下采用一个开窗器
·宽度1500mm-3000mm建议采用两个开窗器
·单个开窗器静止锁紧力：2000N
·行程：200-500mm可选

可实现多窗联动开启
多窗联动开启：
·通过单一手摇柄可实现多窗联动开启和锁闭。
·开启窗位置及组合方式多样。
·驱动手柄安装位置可根据实际要求设定。

No special profiles required
·Suitable for all doors, windows and façade opening window systems
·Hand crank open control
·Active positioning at any opening position
·Adjustable pre-locking force
·Optional multi-point lock linkage to achieve automatic or semi-automatic multi-point lock locking

Features:
·The chain is made of high-quality stainless steel
·Features of low noise, low energy consumption and maintenance-free
·Small size, modern appearance design, harmonious and beautiful with windows
·Push-pull force strong locking force, suitable for most opening windows

Product parameters:
·Applicable window type: top hung window (friction hinge and hinge)
·Use one window opener for width below 1500mm
·It is recommended to use two window opener for width 1500mm-3000mm
·Static locking force of a single window opener: 2000N
·Opening distance: 200-500mm optional

The solution could achieve multi-window linkage opening
Multi-window linkage opening:
·Multi-window linkage can be opened or closed through a single hand crank.
·Various opening window positions and combinations.
·The installation position of the drive handle can be set according to actual requirements.
