内开内倒窗系列 | Tilt and turn
550系列内开内倒
适用开启尺寸：
MAX宽：380MM-900MM
上下合页设计 全新斜拉杆设计 上合页固定板采用定位安装方式，同时增加一组框合页固定板安装螺丝，使上合页固定更加稳定。
标配防误操作器，防误操作器独立式设计，安装位置多样，适合不同尺寸窗型
下合页2D可调，全新的调整方法，对窗扇无需解除负重。使调整更有效，更便捷。

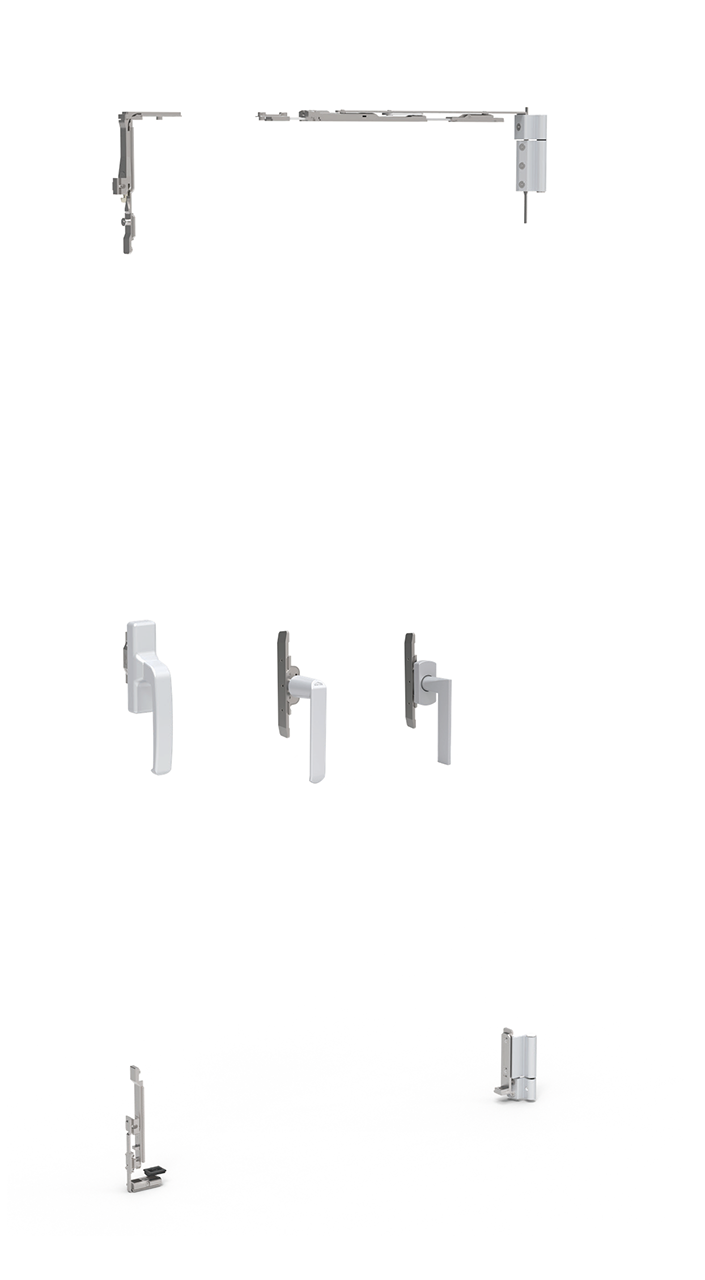

550 series (Tilt and turn)
Available dimension:
Max: 380mm---900mm
Balance design with top and bottom hinge dimensions
New designed compass arm
Top hinge supporting plate designed as principle of “plug and play”
Extra fixing screw designed for more stable concern with top hinge
Standard anti fault device is in the package
Flexible assemble position with anti fault device, makes different position assembly possible, and it is available for different dimension of window, not limited with T/T function too.
2D adjustment with bottom hinge, makes adjustment more flexible and easy handling.
560系列内开内倒
承重：80KG
适用开启尺寸：宽：385MM-900MM
特点：
开启功能管理控制
合页部分特点与NEW550T/T 相同，并通用。
NEW560T/T 是对现有平开下悬功能的优化和改进。
实现开启窗，先下悬，后平开。开启方式更加适合特定人群使用。
管理安全锁，实现了对内平开下悬窗的隐形管理控制，在保证整窗美观的同时，有效的控制和屏蔽了内平开下悬窗的平开功能，使用更加安全。
独特的下悬控制结构，有效的提升了下悬状态的安全性和可靠性，具有良好的防盗性能。

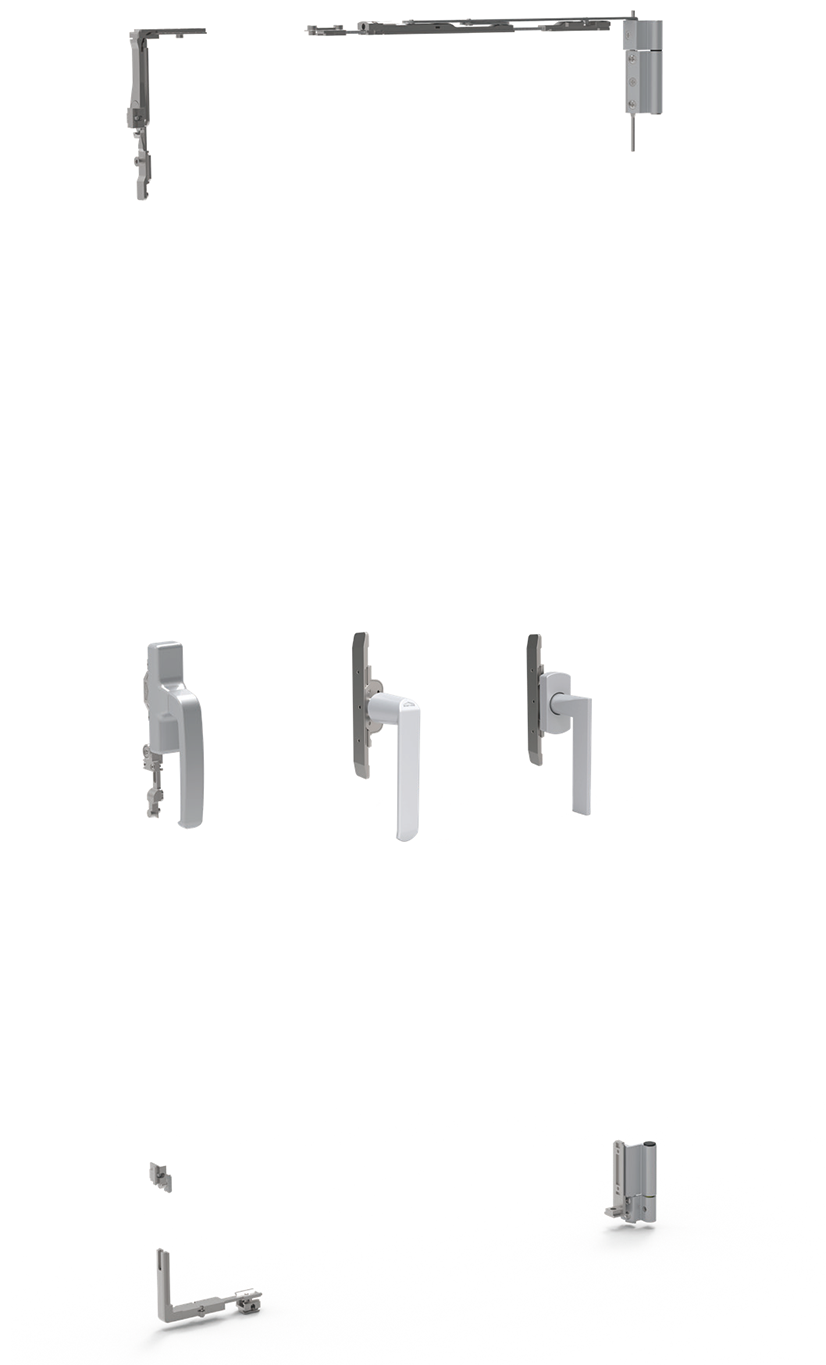

560 series (Tilt and turn)
Bearing Weight: 80KG
Applicable opening size: width: 385MM-900MM
Features:
Turn on feature management control
The features of the hinge part are the same as NEW
550T/T.
NEW 560T/T is an optimization and improvement of the existing tile and turn function. To realize the opening of the window, first tilt,then turn.
The opening method is more suitable for specific groups of people.
The management safety lock realizes the invisible management and control of tilt and turn window.
While ensuring the beauty of the entire window,it effectively controls and shields the casement function of tilt and turn window, making it safer to use.
The unique turn control structure effectively improves the safety and reliability of turn state,and has good anti-theft performance.
570系列内开内倒
承重：80KG
适用开启尺寸：宽：450MM-920MM
特点：
无底座执手 + 全隐藏
上下合页全隐藏，可实现 180 度内平开。
执手无底座安装方式，更美观，款式选择更加灵活。
转角器全新安装方式，方便安装，防误操作器同转角器一体化设计，适用更多窗型。

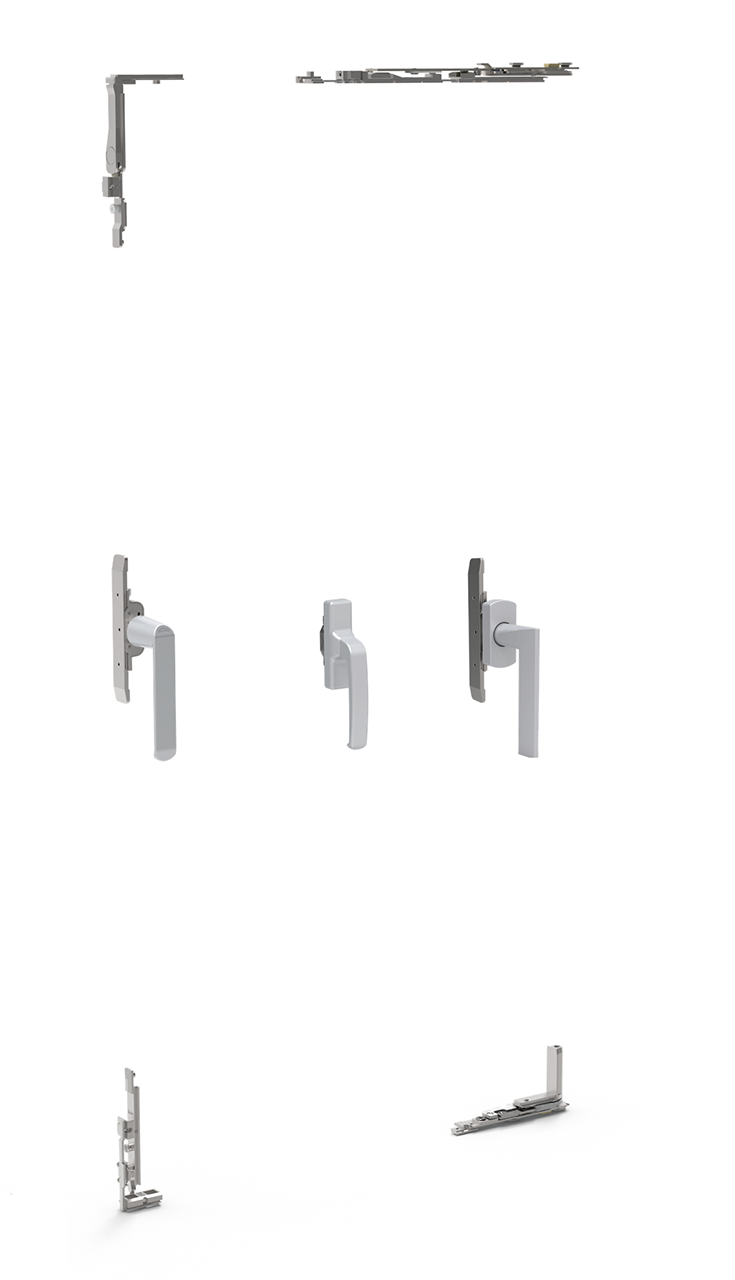

570 series (Tilt and turn)
Bearing Weight: 80KG
Applicable opening size: width: 450MM-920MM
Features:
No base handle + fully hidden
The top and bottom hinges are fully hidden and can be opened within 180 degrees.
The handle is installed without a base, which is more beautiful and more flexible in style selection.
The new installation method of the corner drive device is convenient. The integrated design of the anti-fault operation device and the corner drive device is suitable for more window types.
950系列内开内倒
承重：130KG
适用开启尺寸：宽：385MM-1600MM
特点：
重型平开下悬
全新的合页固定方式，更加便于安装和固定。
转角器全新安装方式。方便安装，防误操作器同转角器一体化设计，适用更多窗型。
下合页 2D 可调，全新的调整方法，对窗扇无需解除负重。使调整更有效，更便捷。

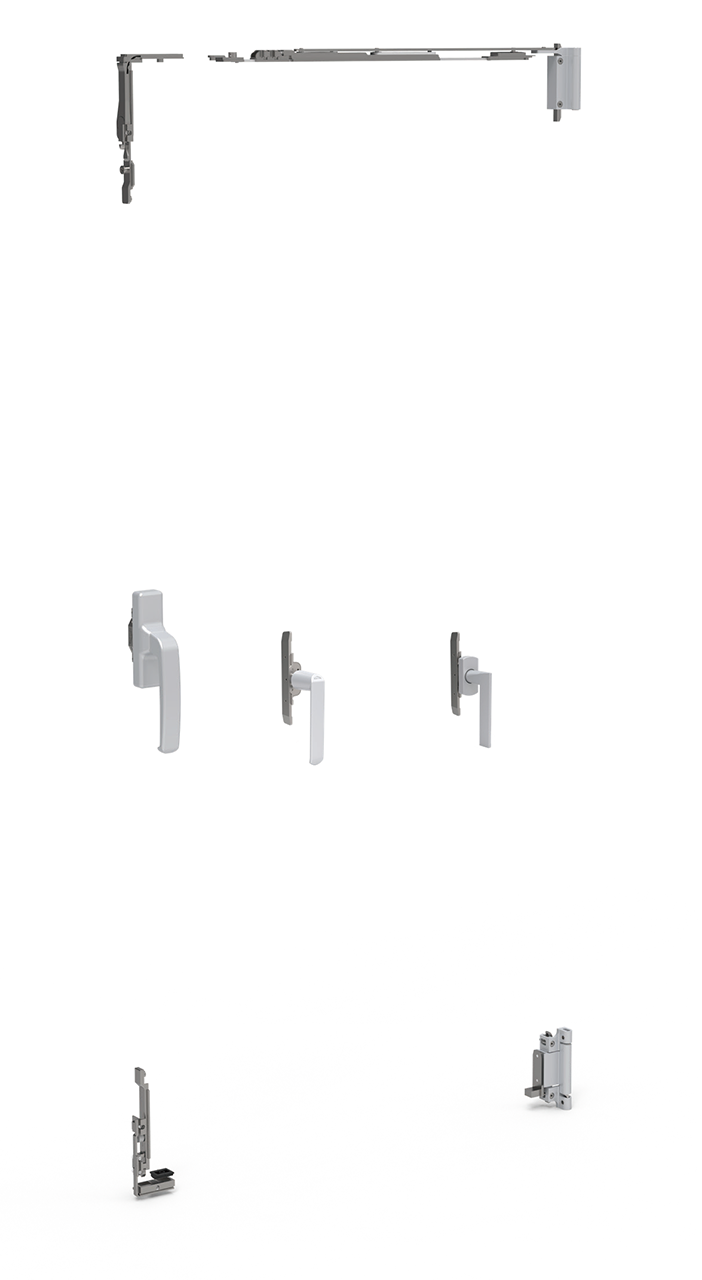

950 series (Tilt and turn)
Bearing Weight: 130KG
Applicable opening size: width: 385MM-1600MM
Features:
high loading capacity tilt and turn window
The new hinge fixing method makes it easier to install and fix.
New installation method of corner device. It is easy to install, and the integrated design of the antifault operation device and the corner drive device is suitable for more window types.
The bottom hinge is adjustable in 2D, with a new adjustment method, no need to lift the load on the window sash. Make adjustments more effective and convenient.
